点选放大

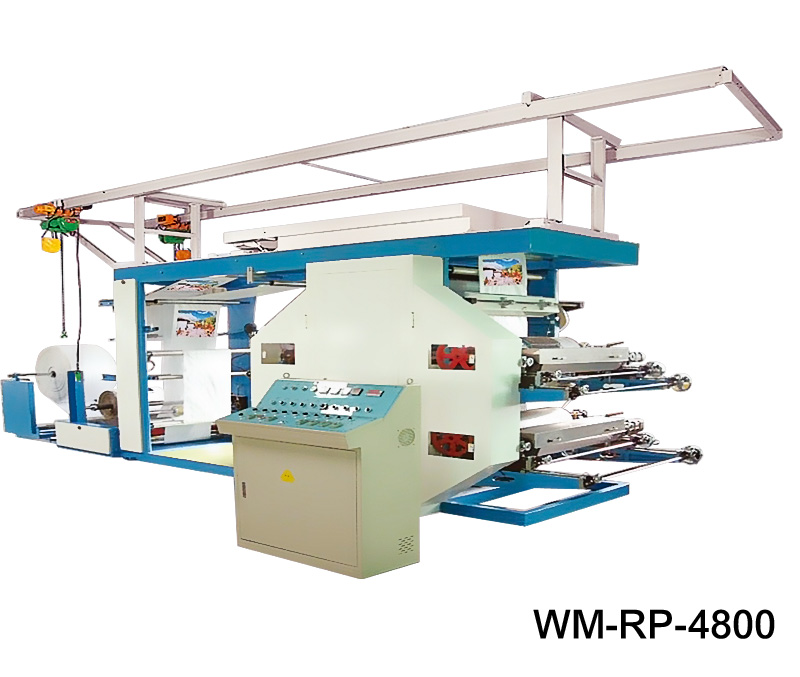

盘式印刷机

详细资讯

*如有兴趣请洽高雄厂

特性

Easy operation flexible starting accurate color register.

The meter counter can set printing quantity according to the requirements stop the machine automatically at the set quantity or when the material is cut off.

Lift and lower the printing plate cylinder manually it will automatically stir the printing ink after lifting.

Reliable drying system coordinated with high-speed rotation it will automatically break circuit when the machine stops.

Current output type temperature control system makes heating quicker and electricity saving.

The printing ink is spread by the knurled cylinder with even ink color.

Obverse and reverse side once-through continuous printing.

There are inching /stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

规格表

型号	WM-RP-4800
CHARACTERISTIC	AUTOMATIC FLEXOGRAPHIC COLOR PRINTING
APPLICABLE PLASTIC CLOTH	PP/PE WOVEN BAG
PRODUCTION CAPACITY	60~80M/Minute
PRINTING POSSIBILITY	0+4 , 1+3 , 2+2
NO.OF COLOR	4 COLORS
PRINTING WIDTH	400MM~850 MM
PRINTING LENGTH	500-1300 MM
PRINTING LENGTH	RUBBER PLATE , ZINE PLATE (7MM)
POWER	3HP
POWER COMSUMPTION	17.4KW
PRINTING INK	INK
MACHINE DIMENSION	L6530 x W1850 x H2180MM (N.W 3200KGS)
